On-Board Charger for EV Motorcycle | Fast & Safe Charging

Stay charged and ready to go with Elektree’s on-board battery chargers (OBC)

The EV’s on-board charger (OBC) is the life of the party, recharging the high-voltage (HV) main battery from the AC dance floor while the car’s parked. Longer driving ranges of plug-in hybrid electric vehicles (PHEV) and battery electric vehicles (BEV) are achieved by amping up the battery capacities and energy efficiencies of electric components. Typical development targets are efficient power conversion for 400 V and 800 V systems, power density, reliability, and bi-directional (instead of unidirectional) power flow to enable future use cases (V2L, V2H, and V2G). The battery voltage classes used tend to be standardized at approximately 450 V, with a trend towards higher voltages as this supports faster charging times and lighter cabling within the vehicle.

Discrete high-voltage components are the life of the party for on-board charging applications, as price pressures increasingly displace module-based solutions. The trend towards fast charging also impacts the power range demanded from OBC topologies. Therefore, new designs trend towards 11 kW or even up to 22 kW. This development, paired with a demand for high efficiency and power density at low system cost, is a strong driver for the usage of three-phase solutions.

Optimize EV battery management with Elektree’s on-board charging (OBC) technology

We continuously innovative our product solutions for the electric vehicle (EV) market, ensuring that our customers can achieve their desired driving ranges with maximum energy efficiency. Explore some of Infineon’s system approach benefits below.

  • Fully automotive-qualified product portfolio
  • Supports a wide range of conversion topologies
  • Compact design with highest power density
  • Very low switching losses at high switching frequencies
  • Isolation integrated in gate drivers and digital isolators
  • High-performance 32-bit microcontrollers

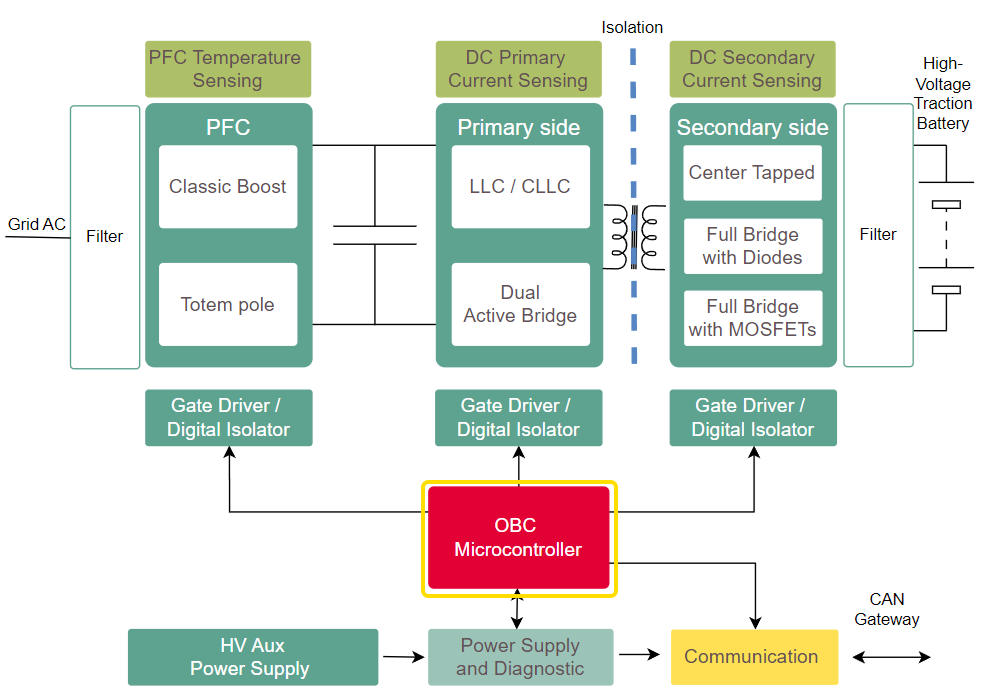

PFC stage and DC-DC converter (HV-HV) for on-board charging (OBC)

A typical OBC application consists of a PFC and a HV-HV DC-DC stage.

PFC stage:
– Correction >0.9
– DC link voltage regulation
– EMC input filter
– Total harmonic distortion <10%

Typically realized via standard boost topology or totem pole topology.

HV-HV DC-DC converter:
– OBC output voltage regulation
– Setting charge current
– Reinforced galvanic isolation
– EMC output filter

Typically realized via (C)LLC, ZVS PS FB, or DAB topologies.

Boost your on-board battery charger with innovative and reliable charging connectivity solutions

Elektree provides innovative and dependable charging connectivity solutions that facilitate the efficient distribution of electricity between power grids and electric vehicles. We enable ISO 15118 solutions with our products, utilizing TPM modules in combination with AURIX™ microcontrollers for secure communication. Our Wi-Fi/Bluetooth® module supplements powerline communication, allowing for data storage and updates. Infineon’s CAN transceivers offer connections to vehicle networks, simplifying the development of charging solutions that meet and exceed ISO 15118-defined requirements. By offering these solutions, Elektree positions itself as a leader in on-board charging connectivity.
Innovative NACS-compatible charging interface solutions

Elektree’s charging solutions are a real charge-up! Innovative and reliable, they support both NACS and CCS – the dynamic duo of charging standards. Our power and semiconductor expertise ensures efficiency, reliability, and safety that’s off the charts. Now, NACS and CCS may not be BFFs, but our routing switches make it a breeze to identify the charger and direct the power where it needs to go. Infineon’s got our back with the perfect semiconductor solutions. It’s a real charge-tastic collaboration!

×
